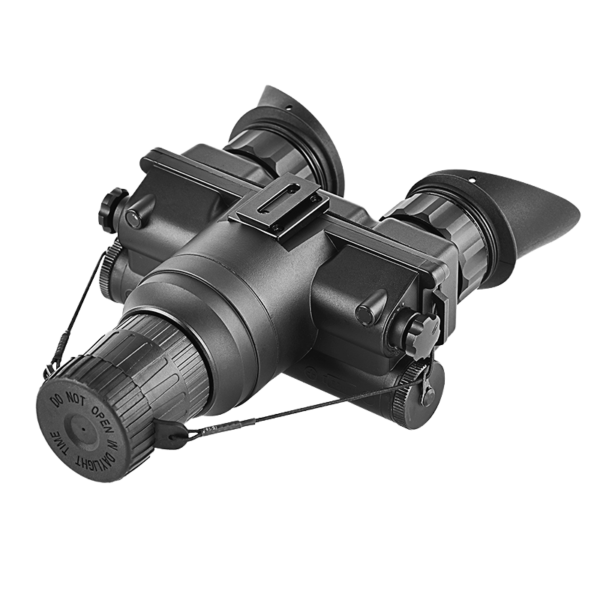

The ORPHA ONV2 is a high-performance bi-ocular night vision system, engineered to provide an optimized PVS-14 alternative for operators who require superior depth perception and reduced eye strain during extended reconnaissance. By mapping a single, high-resolution Gen 2+ intensifier tube into a dual-eyepiece configuration, the ONV2 delivers an ergonomic viewing experience that significantly improves situational awareness in complex CQB and low-light field environments. The system is built with ultra-broadband, multi-layer coated optics to ensure maximum photon transmission, providing clear, high-contrast imagery even in the most demanding nocturnal conditions.
Designed for mission-critical reliability, the ONV2 features a ruggedized IP65-rated chassis that provides robust protection against heavy rain, dust, and sand, ensuring operational continuity in harsh environments. The device is engineered to withstand extreme thermal fluctuations ranging from -50°C to +60°C, making it a reliable tool for global deployments. Furthermore, the system includes advanced tactical safeguards, such as a 10-second bright light cutoff system that protects the intensifier tube and an orientation-sensing auto-shutoff mechanism that triggers when the device is flipped up into the stowed position.
As a vertically integrated defense manufacturer, ORPHACORP offers the ONV2 platform as a highly scalable B2B solution for international law enforcement and defense procurement. Being completely ITAR-free, this system is an ideal candidate for customized bulk orders, allowing agencies to specify unique lens configurations, phosphor variants, and housing modifications to meet exact tender requirements. With a proven 10,000-hour MTBF and a comprehensive 2-year factory warranty, we deliver reliable, export-ready tactical optical intelligence tailored to your strategic needs.
Technical Specifications & Custom Options
| Optical Configuration | Bi-Ocular (Dual Eyepiece, Single Objective) |
|---|---|
| Intensifier Tube | Gen 2+ |
| Resolution | 57-64 lp/mm |
| Signal-to-Noise Ratio | 17-21 |
| Magnification | 1x (Interchangeable 4x/6x/8x lenses supported) |
| Field of View | 40° |
| Power Source | 1x CR123A or 2x AA (Multi-fuel) |
| Operating Temperature | -50°C to +60°C |
| Ingress Protection | IP65 (Dustproof & Waterproof) |
| Weight | 440g |
