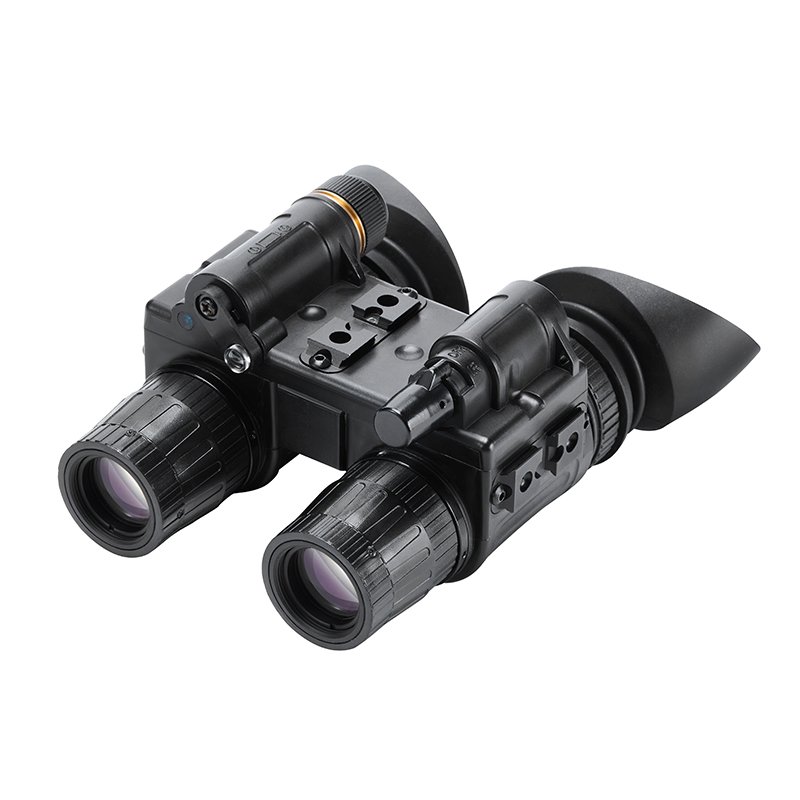

ORPHA MB120 Gen 3 Tactical Night Vision Binocular

ORPHA MB120 Gen 3 Tactical Night Vision Binocular

Elite Depth Perception & Tactical Advantage:

  • Tube Architecture: Dual Gen 3 Image Intensifiers (65-72 lp/mm)
  • Phosphor Options: P43 (Green) / P45 (White)
  • Smart Functions: Flip-up auto-shutoff & Bright-light protection
  • Optics (FOV): 40° Standard Field of View

*ITAR-Free. OEM/ODM manufacturing available for law enforcement and defense contractors.

The ORPHA MB120 is a military-grade, dual-tube tactical night vision binocular designed for uncompromising performance in extreme environments. Featuring advanced Gen 3 image intensifier tubes with a high resolution of 65-72 lp/mm, the MB120 delivers exceptional stereoscopic clarity for night patrols, vehicle operation, and complex search & rescue missions.

Engineered with tactical operators in mind, the system integrates advanced smart features including flip-up auto-shutoff (direction sensing), automatic brightness control, and active bright-light protection that instantly powers down the unit when exposed to environments exceeding 40 Lux. The ergonomic, anti-slip housing is IP65-rated, ensuring operational reliability in heavy rain, dust storms, and extreme temperatures ranging from -50°C to +60°C.

With a “zero-drain” standby design, the MB120 guarantees that batteries remain fully charged when not in active use. The system is fully compatible with standard tactical helmets and supports extended IR illuminators for ultra-long-range observation.

Technical Specifications & Custom Options

System Architecture Dual-Tube Binocular / Helmet-Mountable
Image Intensifier Tube (IIT) Gen 3 (High Performance)
Resolution & SNR 65-72 lp/mm | 21-24 dB
Optical System Magnification 1x | FOV 40° | Lens F1.2, 25.8mm
Smart Sensors Flip-Up Auto-Shutoff | Bright-Light Protection (>40 Lux)
Power Supply 1x CR123A Lithium OR 1x AA Battery
Battery Life Up to 80 Hours (IR Off) | Zero-Drain Standby
Weight & Dimensions 625g | 112 x 108 x 65 mm
Environmental Rating IP65 (Dust & Waterproof) | Operating: -50°C to +60°C
⚙️ OEM/ODM Manufacturing Notice: ORPHA provides extensive customization for the Military series. Parameters such as FOM thresholds, housing engravings, and tube specifications can be tailored to meet your agency’s tactical requirements.
