Tactical Scenario & GPNVG-18 Alternative

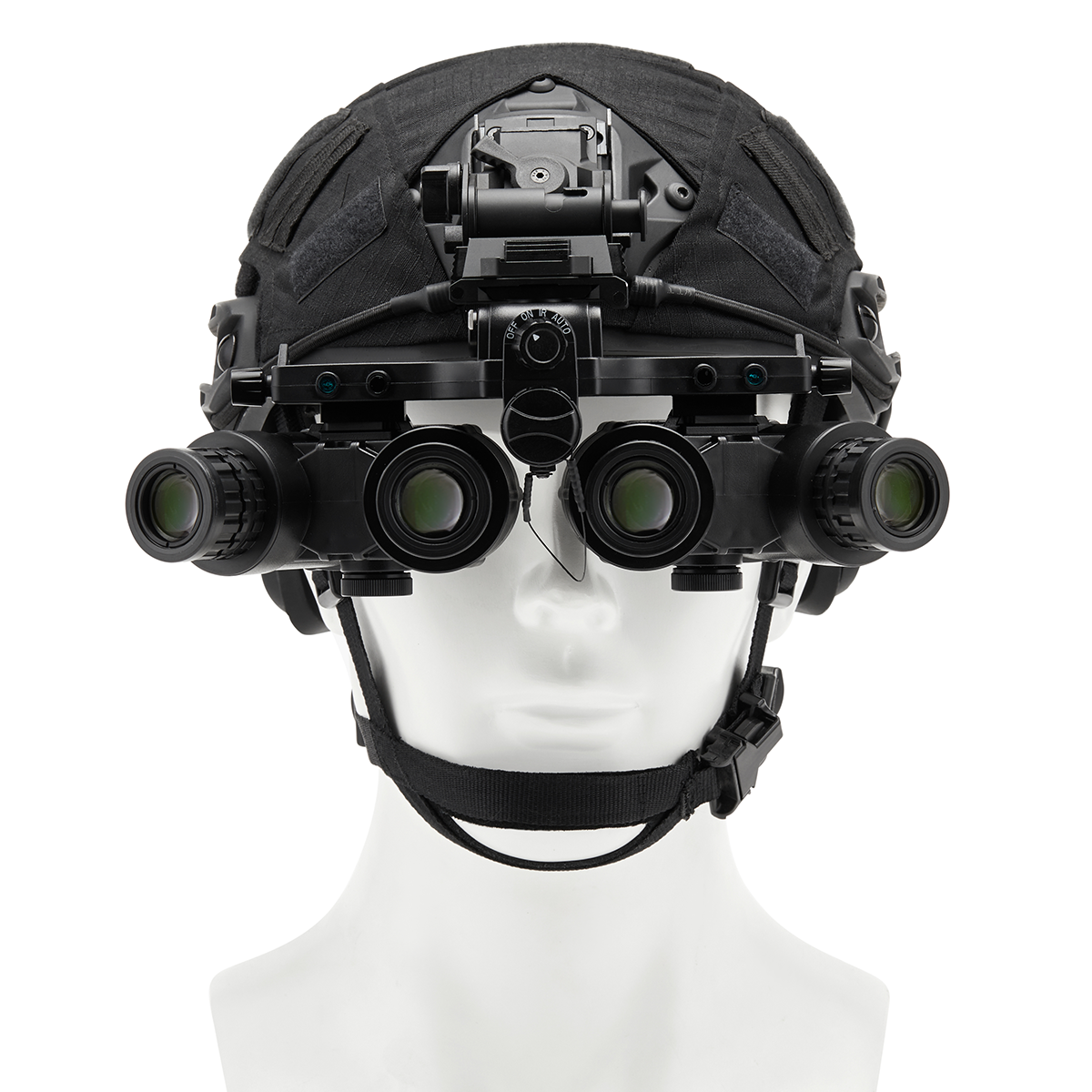

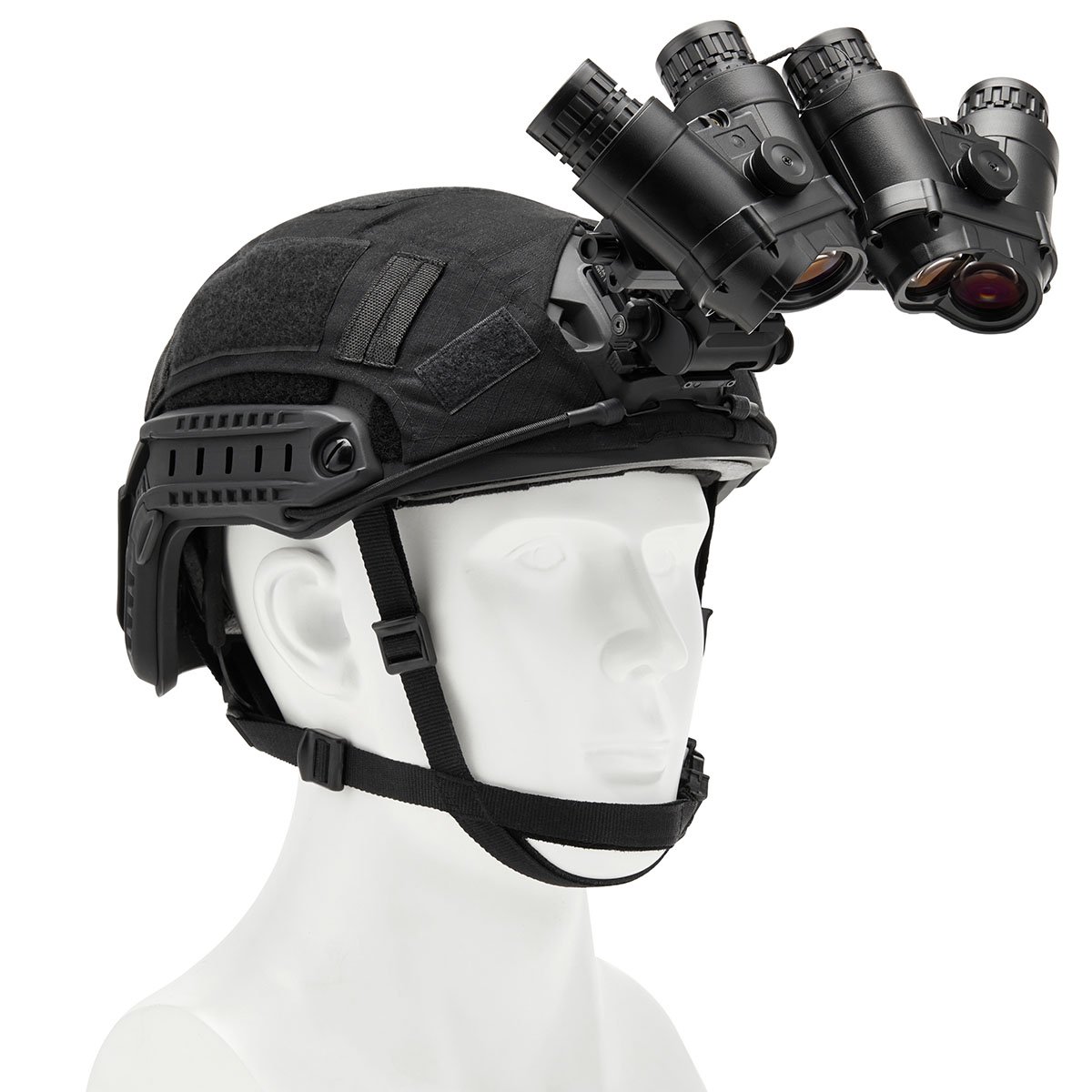

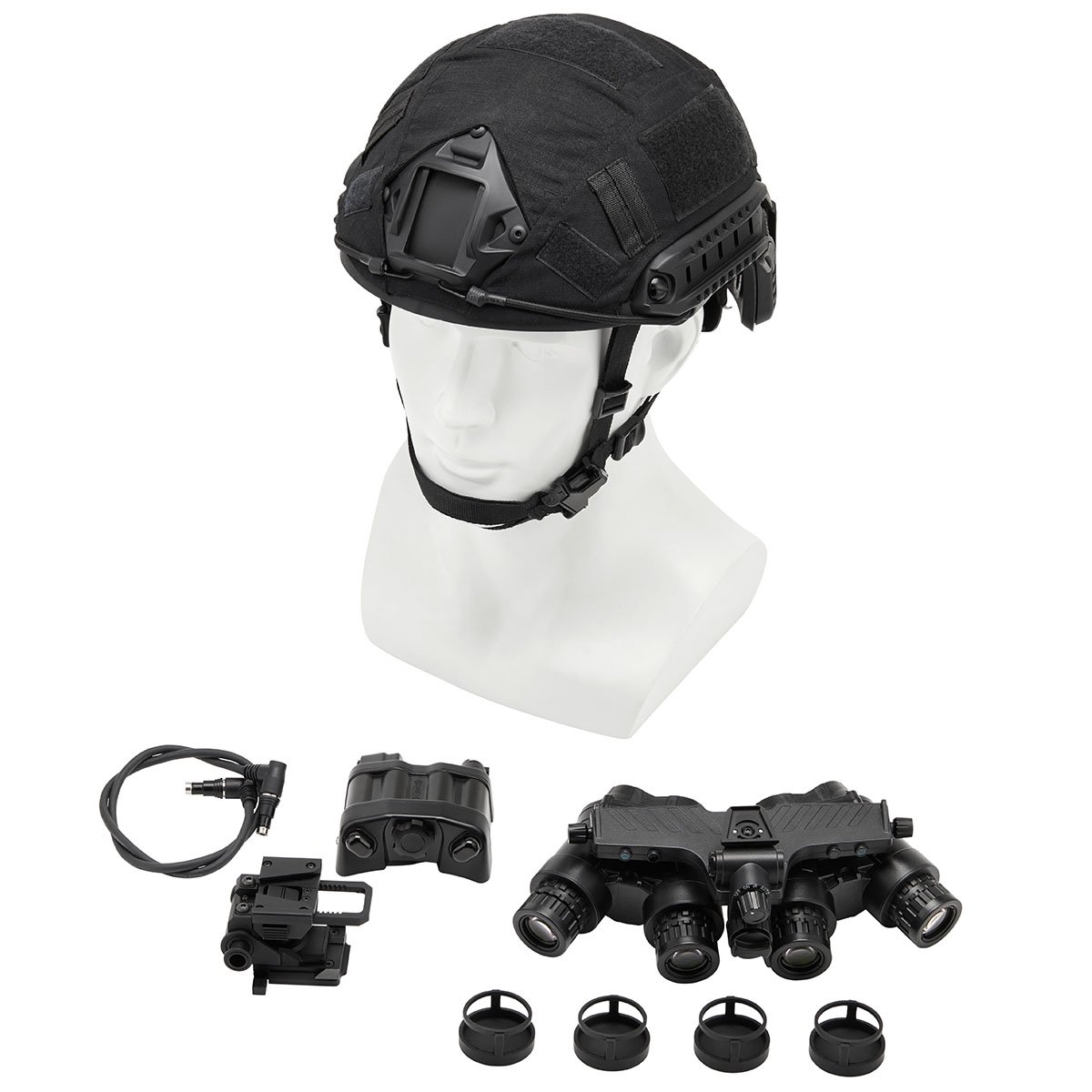

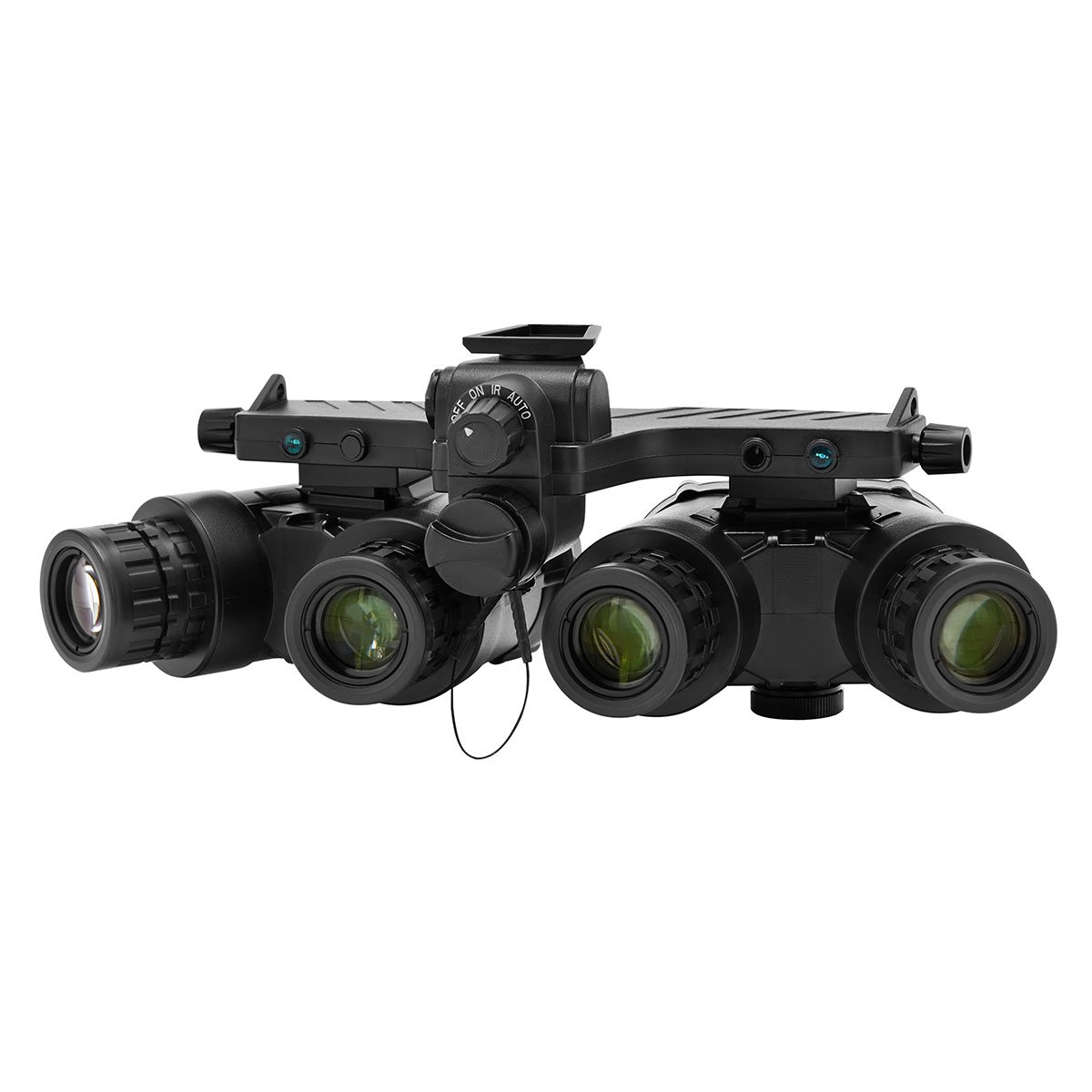

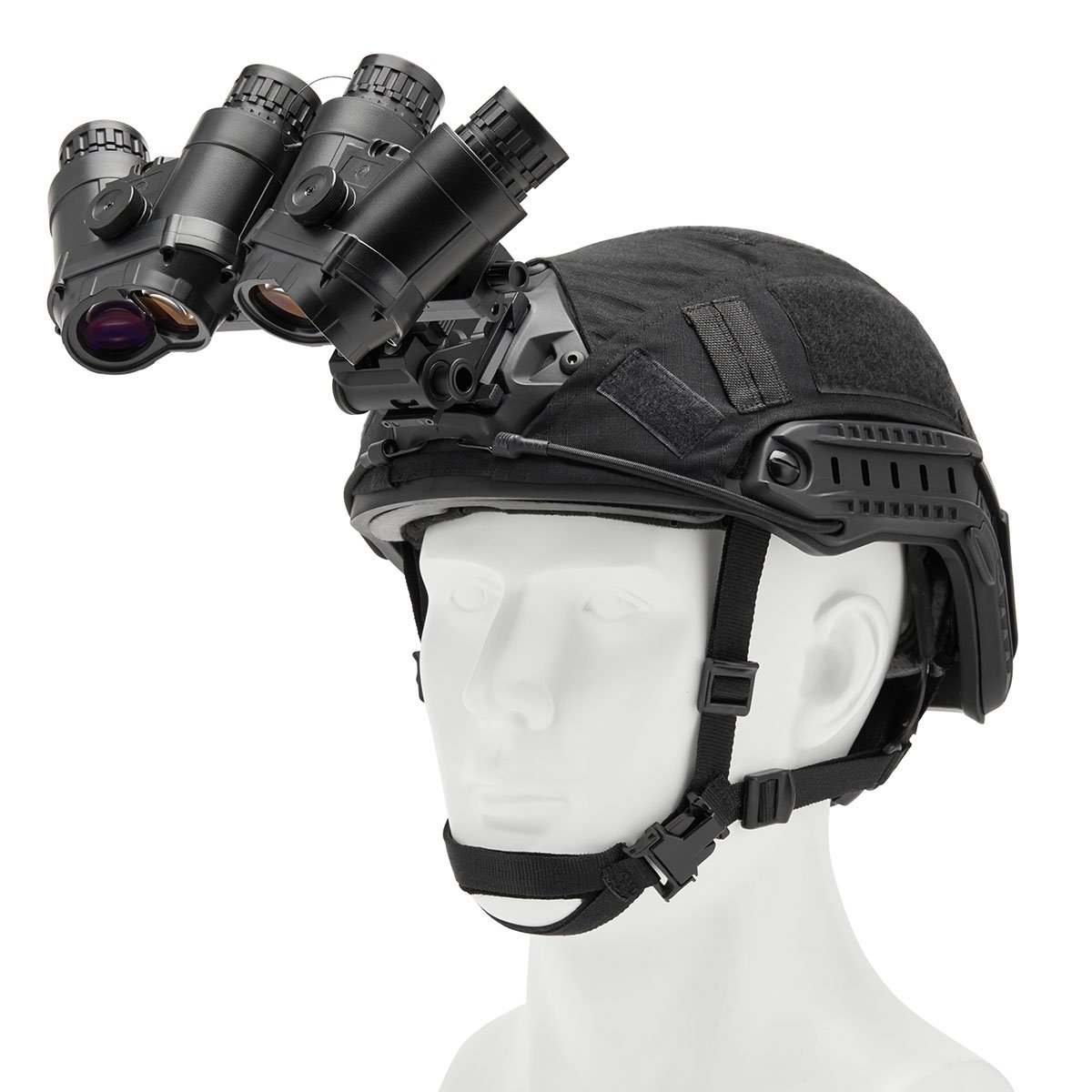

Wide-field-of-view night vision is the difference between spotting a threat at the edge of your vision and missing it entirely. The ORPHA DB212 Panoramic Night Vision Goggle stitches four Gen 2+ image intensifier tubes into a single 120° x 50° field of view — wider than the 97° AN/GPNVG-18 it benchmarks against and roughly triple the 40° FOV of a standard AN/PVS-14 monocular. At 912 g, it weighs comparably to the legacy GPNVG-18 (~930 g), yet delivers a broader peripheral picture that lets operators keep their head still and their position concealed. For units seeking a GPNVG-18 alternative without ITAR restrictions, the DB212 brings quad-tube panoramic awareness to global defense and law enforcement procurement.

Gen 2+ Technology in the Field

The DB212 is built around Gen 2+ image intensifier tubes with a Figure of Merit (FOM) of 1400–1800, resolution of 55–64 lp/mm, and signal-to-noise ratio of 23–28. Auto-gated bright-light protection cuts power within 10 seconds when ambient light exceeds 40 Lux, safeguarding the tubes and the operator’s eyes during sudden illumination changes. An onboard 850 nm infrared illuminator auto-engages below 0.05 Lux and disengages above 0.1 Lux, extending usability into near-total darkness.

Wide-FOV Situational Awareness

As a four-tube panoramic system in the GPNVG-18 lineage, the DB212 uses multi-aperture image stitching, device miniaturization, and lightweight optics to achieve a 120° x 50° field of view — more than double the view of a traditional binocular NVG. This wide FOV matches the natural peripheral perception of the human eye, so operators scan a large area without turning their head, reducing the movement that could expose a position during night operations and vehicle navigation.

The panoramic goggle excels across mission profiles that demand constant peripheral awareness: armored-vehicle and tactical-driving crews benefit from the uninterrupted horizontal view without glancing away from the road; perimeter-overwatch and base-security teams hold a wider threat sector in a single glance; maritime boarding and search-and-rescue operators track multiple crew members simultaneously. In close-quarters battle stacks, the 120° picture lets the lead operator keep both flanks in view while advancing, where a 40° monocular would force head-swings that telegraph position. By reducing the need to scan mechanically, the DB212 shortens reaction time and lowers the cognitive load of stitching together a narrow-tube picture.

Environmental Reliability & Build

Engineered for sustained field use, the DB212 is rated IP65 out of the box and is upgradable to IP68 for submerged operations. It operates across a -40°C to +55°C temperature range at 5%–98% relative humidity, with a mean time between failures (MTBF) of 10,000 hours. The full aluminum-alloy housing (customizable) withstands recoil and impact, while a flip-up 90–120° direction sensor auto-stands-by the unit when stowed.

Why Choose This Alternative?

• Wider Than GPNVG-18: 120° FOV vs. ~97° (AN/GPNVG-18) and ~40° (PVS-14) — more peripheral awareness per glance.
• ITAR-Free: global export availability without US State Department restrictions.
• Factory-Direct Value: 912 g quad-tube build at direct-from-factory procurement pricing.
• Upgradeable: optional IP68 sealing, external battery pack, and a front-mounted thermal clip-on for fusion capability.
• Dual-Track: buy the ORPHA-branded unit off-the-shelf or fully customize via OEM/ODM.

Explore the full range of night vision systems for related monocular and binocular alternatives.

Trust & Compliance

Compliance: TBC — do not list certifications without source confirmation.

Warranty: 1-year official ORPHA warranty.

ITAR-Free: the ORPHA DB212 contains no ITAR-controlled components and is available for global export.

ORPHA OEM/ODM Manufacturing

The DB212 is available both as a finished ORPHA-branded goggle and as an OEM/ODM platform. Factory-direct customization includes tube grade selection (Gen 2+ FOM tiers), housing material and finish, interpupillary-distance mechanics, reticle and firmware tuning, and private-label branding. An optional front-mounted thermal clip-on converts the unit into a fused I²+thermal system for operators who need thermal overlay on top of panoramic night vision. ORPHA supports low-MOQ defense and law enforcement contracts with consistent quality control.
